Face Controller

FE-500L

All Products

Download

FE-500

TSG-750
  • AI technology

    Through AI technology that
    enables continuous learning,
    the recognition rate is increased by
    reflecting recent changes
    in the user's face.

  • Recognition Speed for 1:N

    <1 Sec when 3K user

  • Recognition Function

    Face recognition + Mask detection +
    Multi verification
    + Live detection + QR code scan

Face recognition rate 99.77%

99.77% recognition rate at 1% FAR
99.27% recognition rate at 0.1% FAR

Recognition Speed for 1:N

<1 Sec when 3K user

Live detection

When there are 3K user, it can be applied to Access/T&A of
large-scale business sites at a speed of less than 1 second.

Real-time face recognition success
Real-time face recognition failure(photo/video)

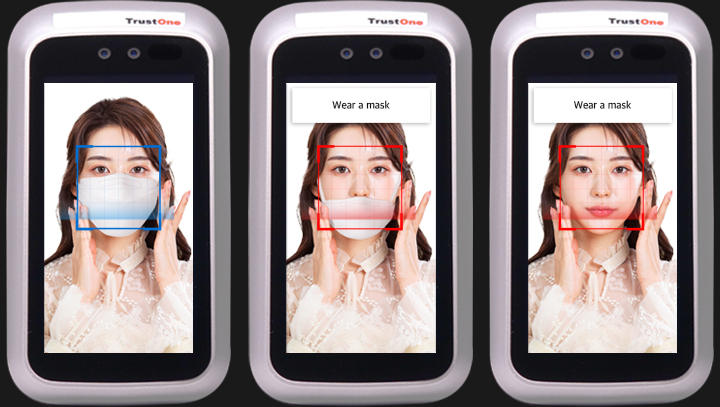

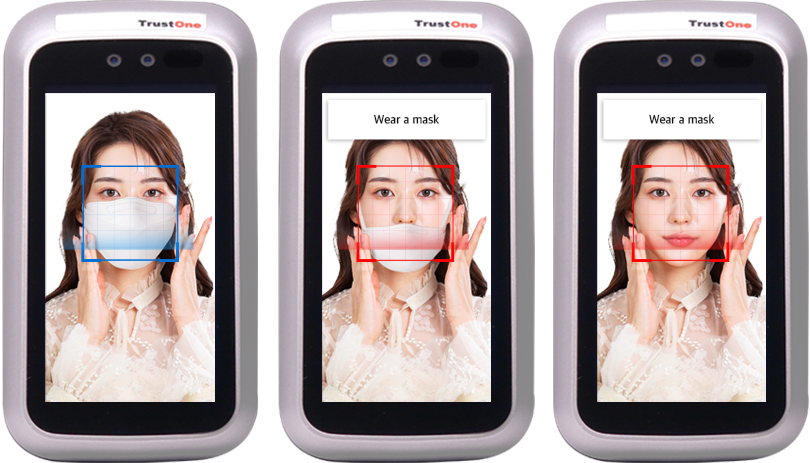

Mask detection

If you are not wearing a mask,
you will hear voice saying "Please wear a mask."

Multi-user function

Possible to authenticate 3-5 people
simultaneously within 1sec

NFC Reader

The NFC function of the FE-500L allows
convenient access instead of a card.

QR code scan

FE-500L enables QR code recognition,
which has become a part of everyday life.

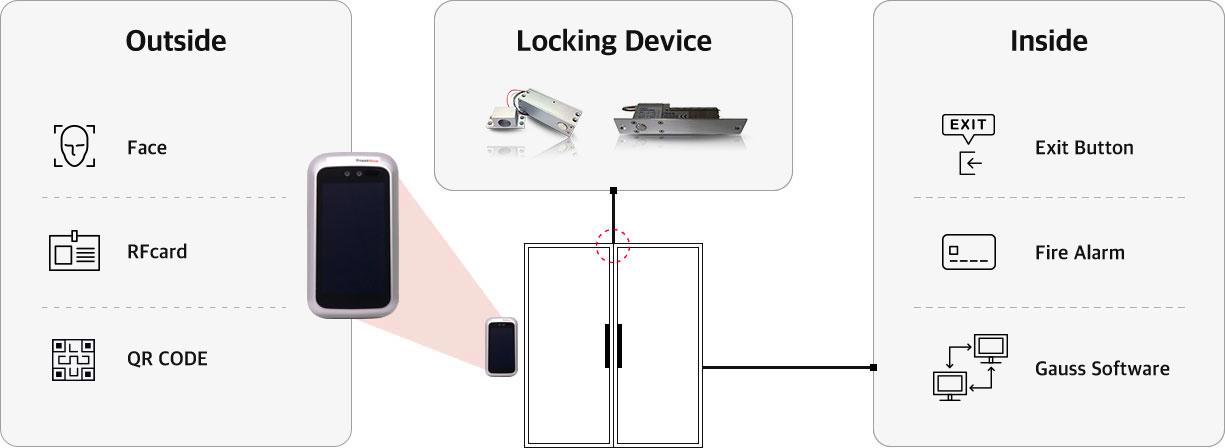

System Configuration Diagram

Product Info

FE-500L Specification
CPU 2 core CPU
Memory 1GB RAM, 4G Flash
LCD 5 inch / 7 inch Touch screen
Camera 1MP dual-lens
No. of user Registration 3K user capacitor / 100K Event log
OS Linux
Function Face + Mask detection
Power 12V/2A
Detection Single / Multi(Up to 3 person)
Range Max 3M
Live detection Picture, Video can be detected
QR code YES
Communication TCP/ WIFI(Option)
Speed >1s(1:N, 3k)
RF card MIFARE/NFC
Temperature -10°C – 50°C
Humidity 10% - 90%
Size 165mm×92mm×30mm
